Jail Samba in FreeBSD

The release of FreeBSD 12 with VNET support has made it easy to jail a Samba file server using iocage.

To create a jail that uses DHCP to request an IP address from the router, call iocage create and specify the bpf and dhcp parameters. Alternatively, to create a jail with a static IP address, call iocage create and specify the defaultrouter and ip4_addr parameters.

In this example, I create a new jail named media that relies on DHCP to reserve IP address 192.168.0.108 on startup.

$ su
Password:

# iocage create -n "media" -r latest --thickjail vnet="on" allow_raw_sockets="1" boot="on" bpf="yes" dhcp="on"
media successfully created!
media: vnet requires defaultrouter, using 192.168.0.1
* Starting media
  + Started OK
  + Using devfs_ruleset: 5
  + Configuring VNET OK
  + Using IP options: vnet
  + Starting services OK
  + Executing poststart OK
  + DHCP Address: 192.168.0.108/24

# iocage list
+-----+-------+-------+--------------+------+
| JID | NAME  | STATE |   RELEASE    | IP4  |
+=====+=======+=======+==============+======+
| 1   | media | up    | 12.1-RELEASE | DHCP |
+-----+-------+-------+--------------+------+

Inside the jail, use pkg search to find the latest version of Samba.

# iocage exec media pkg search samba
The package management tool is not yet installed on your system.
Do you want to fetch and install it now? [y/N]: y
Bootstrapping pkg from pkg+http://pkg.FreeBSD.org/FreeBSD:12:amd64/quarterly, please wait...
Verifying signature with trusted certificate pkg.freebsd.org.2013102301... done
[media] Installing pkg-1.12.0...
[media] Extracting pkg-1.12.0: 100%
pkg: Repository FreeBSD missing. 'pkg update' required
p5-Samba-LDAP-0.05_2           Manage a Samba PDC with an LDAP Backend
p5-Samba-SIDhelper-0.0.0_3     Create SIDs based on G/UIDs
samba-nsupdate-9.14.2_1        nsupdate utility with GSS-TSIG support
samba410-4.10.8                Free SMB/CIFS and AD/DC server and client for Unix
samba48-4.8.12_4               Free SMB/CIFS and AD/DC server and client for Unix

Samba 4.10.8 seems to be the latest package, so use pkg install to install it.

# iocage exec media pkg install -y samba410
Updating FreeBSD repository catalogue...
FreeBSD repository is up to date.
All repositories are up to date.
The following 53 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
        samba410: 4.10.8
[...]

Message from samba410-4.10.8:
--
How to start: http://wiki.samba.org/index.php/Samba4/HOWTO
* Your configuration is: /usr/local/etc/smb4.conf
* All the relevant databases are under: /var/db/samba4
* All the logs are under: /var/log/samba4
* Provisioning script is: /usr/local/bin/samba-tool

For additional documentation check: http://wiki.samba.org/index.php/Samba4

Bug reports should go to the: https://bugzilla.samba.org/

Samba configuration is notoriously confusing. For this example, I want to achieve these results:

  • create a single user account for Samba access
  • require a password to connect to the Samba shares
  • deny access to all other users
  • create the Samba shares in the user’s home directory
  • create new shares as needed
  • configure shares to be read-only by default
  • configure particular shares to be writable as needed

Create a user account for Samba access and assign it a password.

# iocage exec media adduser
Username: ccammack
Full name:
Uid (Leave empty for default):
Login group [ccammack]:
Login group is ccammack. Invite ccammack into other groups? []: wheel
Login class [default]:
Shell (sh csh tcsh nologin) [sh]:
Home directory [/home/ccammack]:
Home directory permissions (Leave empty for default):
Use password-based authentication? [yes]:
Use an empty password? (yes/no) [no]:
Use a random password? (yes/no) [no]:
Enter password:
Enter password again:
Lock out the account after creation? [no]:
Username   : ccammack
Password   : *****
Full Name  :
Uid        : 1001
Class      :
Groups     : ccammack wheel
Home       : /home/ccammack
Home Mode  :
Shell      : /bin/sh
Locked     : no
OK? (yes/no): yes
adduser: INFO: Successfully added (ccammack) to the user database.
Add another user? (yes/no): no
Goodbye!

Create the folder you intend to share, along with an extra folder and file for testing, then change their owner to the Samba user.

# iocage exec media mkdir -p /home/ccammack/media/test
# iocage exec media touch /home/ccammack/media/test/test.txt
# iocage exec media chown -R ccammack:ccammack /home/ccammack/media

Use ifconfig to get the name of the jail’s interface, which is epair0b in this case.

# iocage exec media ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
        options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
        inet6 ::1 prefixlen 128
        inet6 fe80::1%lo0 prefixlen 64 scopeid 0x1
        inet 127.0.0.1 netmask 0xff000000
        groups: lo
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
epair0b: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        options=8<VLAN_MTU>
        ether 28:92:4a:db:46:19
        hwaddr 02:0f:6a:76:7e:0b
        inet6 fe80::2a92:4aff:fedb:4619%epair0b prefixlen 64 scopeid 0x2
        inet 192.168.0.108 netmask 0xffffff00 broadcast 192.168.0.255
        groups: epair
        media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
        status: active
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>

Inside the jail, create the samba config file (/usr/local/etc/smb4.conf) using ee or vi.

# iocage exec media ee /usr/local/etc/smb4.conf
[...]

# iocage exec media cat /usr/local/etc/smb4.conf
[global]
workgroup = WORKGROUP
netbios name = MEDIA
security = user
passdb backend = tdbsam
encrypt passwords = yes
force user = ccammack
max log size = 512
hosts allow = 192.168.0.
interfaces = epair0b
bind interfaces only = yes
socket options = TCP_NODELAY
writable = no

[media]
path = /home/ccammack/media
#writable = yes

Use pdbedit to map the user account and password to the Samba database.

# iocage exec media pdbedit --create --user=ccammack
new password:
retype new password:
Unix username:        ccammack
NT username:
Account Flags:        [U          ]
User SID:             S-1-5-21-1722310244-3315895870-785234628-1000
Primary Group SID:    S-1-5-21-1722310244-3315895870-785234628-513
Full Name:            User &
Home Directory:       \\media\ccammack
HomeDir Drive:
Logon Script:
Profile Path:         \\media\ccammack\profile
Domain:               MEDIA
Account desc:
Workstations:
Munged dial:
Logon time:           0
Logoff time:          9223372036854775807 seconds since the Epoch
Kickoff time:         9223372036854775807 seconds since the Epoch
Password last set:    Mon, 11 Nov 2019 01:09:37 PST
Password can change:  Mon, 11 Nov 2019 01:09:37 PST
Password must change: never
Last bad password   : 0
Bad password count  : 0
Logon hours         : FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

Use sysrc to add samba_server_enable=YES to the jail’s rc.conf and start the samba server immediately.

# iocage exec media sysrc samba_server_enable=YES
# iocage exec media service samba_server start
Performing sanity check on Samba configuration: OK
Starting nmbd.
Starting smbd.

From another machine, browse to the \\MEDIA share, enter the Samba user name and password when requested, and note that the contents of \\MEDIA\media are read-only. With the current Samba configuration, the user cannot make any changes to the test folder or the test.txt file inside it.

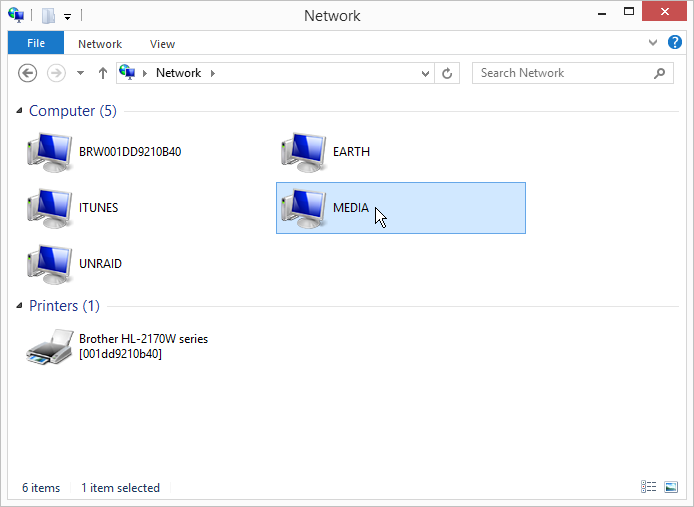

Browse to Network MEDIA share

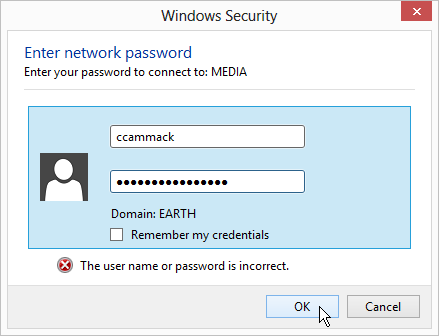

Enter Samba user name and password

To allow changes inside the \\MEDIA\media folder, edit the configuration file again, uncomment the line at the bottom that says #writable = yes and restart Samba.

# iocage exec media ee /usr/local/etc/smb4.conf
[...]

# iocage exec media cat /usr/local/etc/smb4.conf
[global]
workgroup = WORKGROUP
netbios name = MEDIA
security = user
passdb backend = tdbsam
encrypt passwords = yes
force user = ccammack
max log size = 512
hosts allow = 192.168.0.
interfaces = epair0b
bind interfaces only = yes
socket options = TCP_NODELAY
writable = no

[media]
path = /home/ccammack/media
writable = yes

# iocage exec media service samba_server restart
Performing sanity check on Samba configuration: OK
Stopping smbd.
Waiting for PIDS: 5906.
Stopping nmbd.
Waiting for PIDS: 5901.
Performing sanity check on Samba configuration: OK
Starting nmbd.
Starting smbd.

The \\MEDIA\media folder should now allow changes to the test folder and test.txt file.
